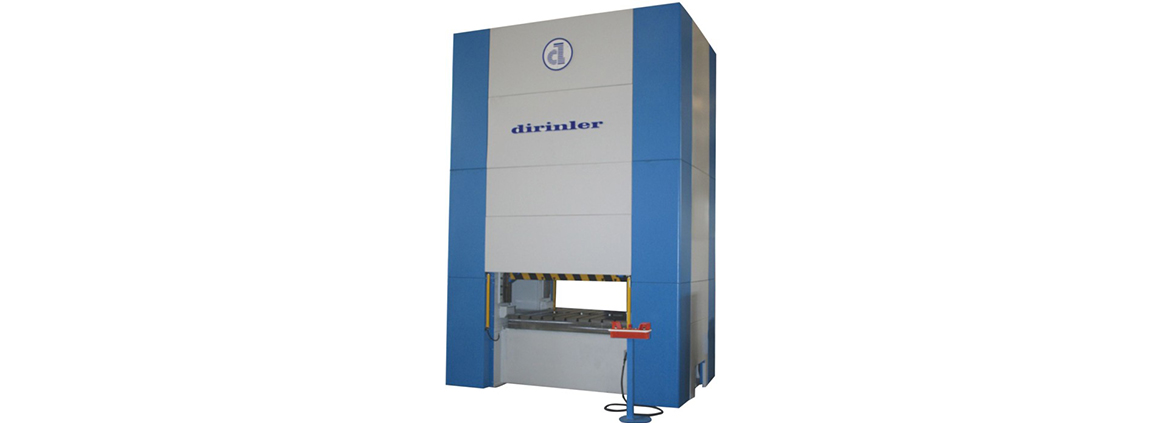

Серия CDCH п

TECHNICAL DATA		TYPE
TECHNICAL DATA		CDCH 1600 P	CDCH 2000 P	CDCH 3000 P	CDCH 4000 P
Capacity	tons	160	200	300	400
Nominal tonnage height	mm	5	6	6	7
Max. closed mold height	mm	450	500	515	550
Stroke	mm	125	150	180	200
Strike number per minute	spm	35	35	26	26
Hammer setup	mm	100	125	140	150
Table size	mm	1200x1000	1200x1000	1200x1000	1200x1000
Motor power	kw	15	18,5	22	30
* Our right to change the sizes and models is preserved.

EQUIPMENT SPECIFICATIONS	TYPE
EQUIPMENT SPECIFICATIONS	CDCH 1600 P	CDCH 2000 P	CDCH 3000 P	CDCH 4000 P
Hydraulic fuse system	S	S	S	S
Motorized ram adjusting mechanism	S	S	S	S
Motorized central liquid lubrication system with return line	S	S	S	S
Photocell safety curtain	S	S	S	S
Conformity with CE norms	S	S	S	S
Speed control unit	O	O	O	O
Adjustable stroke	O	O	O	O
Fast mold changing system	O	O	O	O
Lower and upper buffering system	O	O	O	O
PLC control unit	O	O	O	O
Touch screen control panel	O	O	O	O
S : Standard, O : Optional
